Jupiter was designed to be a versatile, offset-inspired all-arounder for use in both studio and live situations, enriched by series/ parallel/ single-coil switches. However, a deeper understanding of the instrument’s core feature came after receiving feedback, customer reviews, and hours of playing. Jupiter’s dynamic feedback creates enchanting mid-range forward projection, which blooms even stronger after striking each chord or note. It appears as though motion, driven by the player, where touch ignites a chain reaction of frequencies and vibrations, is naturally fitting into the traditional understanding of instrumental mix. Jupiter serves as the conduit between your musicality and precise execution.

FEATURES

Versatile Switching

Dedicated to each pickup, three-position slider switches allow you to change from standard humbucker pickup series mode to single-coil or parallel.

Adjustable Bell Bronze Nut

Following the golden rule that everything in contact with the strings should be meaningful and high-quality, our nut is made of bell bronze, allowing you to fine-tune your setup with individual screws to adjust your string height.

Proprietary SWIFT-RS Bridge

The bridge, made of aerospace-grade aluminum alloy with bell-bronze saddles, is designed for extra rigidity and tonal transfer. A special feature of this bridge is the elongated saddle travel, allowing for proper intonation even down to B Standard tuning.

Material Choice

While every decent guitar company cares about wood quality, we took it a step further by introducing acrylic pickguards and duralumin parts, such as neck plates, “fins,” and the bridge. While we don’t claim to add something significant to the sound, we strive to avoid subtracting anything from the sound with the introduction of higher-grade materials.

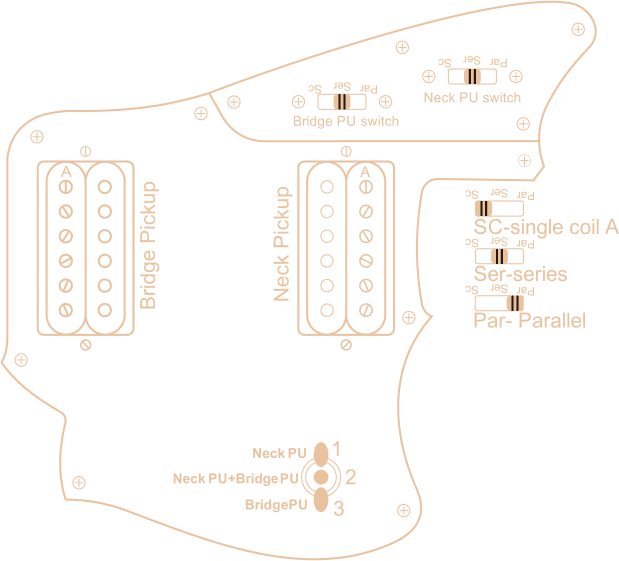

WIRING SCHEMATIC

SPECIFICATION

BACK:European alder
Pickguard:Acrylic pickguard thickness: 3 mm/0.118
Wood:Hard-rock maple, titanium-reinforced
Profile:C profile
1st fret:Depth: 20,5 mm/0.807” Width: 42 mm/1.65”
12th fret:Depth: 22 mm/0.866” Width: 51.7 mm/2.035”
22nd fret:Width: 51.7 mm/2.035”
Scale length:25.5”/648 mm
Fretboard:rosewood/ maple/ custom
Radius:12” radius/304.8 mm
Frets:22 Nickel silver frets, extra-hard, Jumbo, width: 2.8 mm/0.110”, height: 1.65 mm/0.064”
Truss-rod:Easy-access, stainless steel truss-rod whee
Neck pickup:Valiant Guitars Humbucker Callisto, Alnico V
Bridge pickup:Valiant Guitars Humbucker Callisto, Alnico V
Controls:1 volume – CTS 500k, 1 tone – No-Load 500k, 3-way switch – Switchcraft, 2 sliders – parallel/series/single-coil for each pickup – Switchcraft
Capacitor:Soviet paper-in-oil, military spec’ed
Jack:Pure Tone
Bridge:Valiant Guitars duralumin Swift-RS-bridge, quick-release, with bell-bronze saddles
String spacing:10.5 mm/0.416″
Nut:Bell-bronze adjustable, 42mm/1.65″
Tuners:Gotoh 510 series, locking
“Trinity” maple inlays
Duralumin enhanced-grip knobs with wooden pointer
Full shielding
Duralumin cavity covers
Valiant Guitars hard-shell case included

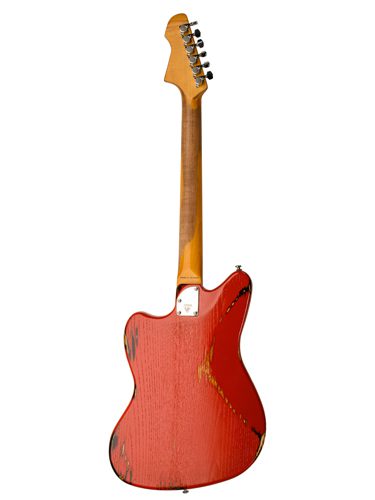

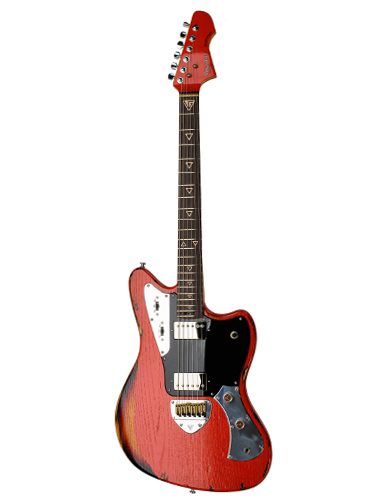

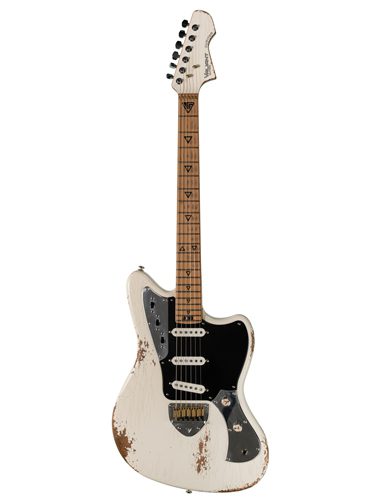

Latest jupiter builds

Design
your own

JUPITER

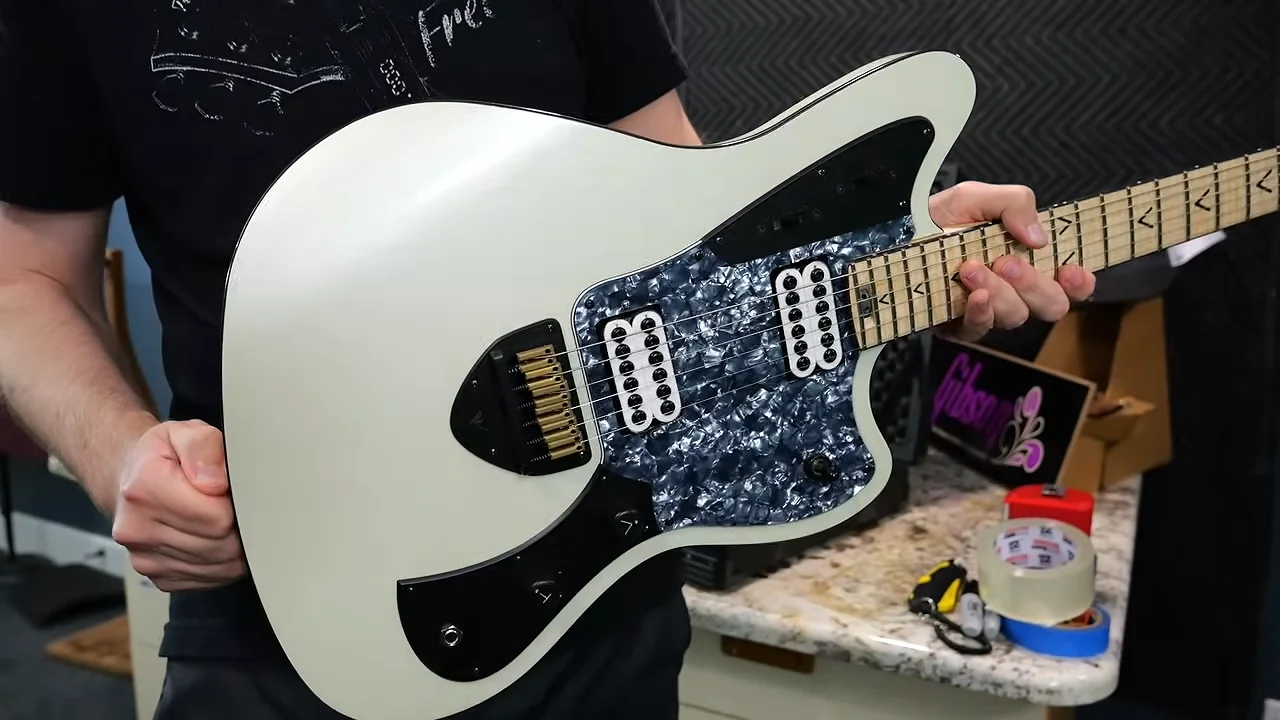

VALIANT REVIEW
